20 June 2007
M1 Star™ EBG/MBG for Special Blind Bore.
TESTAR DIVISION can offer and supply M1 Star™ EBG and MBG plug gauges with 0,6mm (0,0236") distance between contacts axis and the top of the nosepiece. This solution is particularly suitable for special blind bores.
# posted by testar_blogger : 10:39
24 May 2007
M1 Star™ MBG with Pilot Cone, with Double Entry Groove or without Front Chamfer.
The wide set of M1 Star™ MBG Dedicated Solutions encompasses now also plug gauges with specially-shaped nosepiece for specific requests:
- with pilot cone for automatic applications, where hole position can vary, helping to reduce the possibility of accidental damage to the front of the nosepiece;
- with double entry groove for measurements in deep discountinuous bores;
- without front chamfer in case of very short workpieces
# posted by testar_blogger : 14:50
17 January 2007
M1 Star™ EBG/MBG with long nosepiece
The M1 Star™ EBG and MBG plug gauges are now available also with a nosepiece longer than standard. The long nosepiece helps to guide the bore gauge when measuring deep bores, avoiding inclination errors.
# posted by testar_blogger : 16:42
21 December 2006

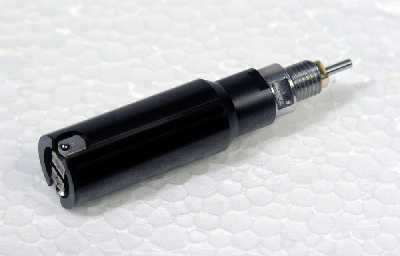

M1 Star™ EBG/MBG with DLC coating
The M1 Star™ EBG and MBG plug gauges are now available also with nosepiece covered in DLC (Diamond Like Carbon). They are a cheaper alternative to versions with carbide-bar inserts and will increase the life of the plug gauge when components are made of abrasive or soft material (i.e. cast iron, titanium, aluminum) and minimizes the friction and the wear of the nosepiece (automatic applications).
# posted by webman : 10:01
07 November 2006
M1 Star™ EBG/MBG for outside diameter
The M1 Star™ EBG and MBG plug gauges are now available also to measure the ouside diameter of internal hubs on trasmission components (for example: sprochet clutch, disc carrier, clutch modules, etc).
# posted by webman : 14:10
10 October 2006
M1 Star™ V-shaped EBG/MBG plug gauges
The M1 Star™ product line includes V-shaped EBG and MBG plug gauges for thrust face width measurements for crankshaft or similar type of components requiring gap measurements.
# posted by webman : 09:05
23 August 2006
M1 Star™ EBG/MBG with Carbide Bar Inserts
The M1 Star™ includes Electronic (EBG) and Mechanical (MBG) bore gauges which have nosepiece with carbide-bar inserts. They are particularly suitable for automatic applications because carbide bars allow to increase the life of the plug gauge reducing the wear of the nosepiece and preventing chance of jamming caused by the presence of metallic chips or cinders.
# posted by webman : 15:00
03 July 2006
M1 Star™ EBG/MBG "Macro-Lite"
The M1 Star™ product line now includes Electronic and Mechanical bore gauges able to measure internal diameters more than 300mm, together with setting rings if requested. The peculiar "lite" structure and two ergonomic handles make version Macro-Lite particularly light and easy to be used, even for diameters up to 450mm.
# posted by webman : 14:35
18 April 2006
M1 Star™ Dedicated Solutions
More than the standard version, the M1 Star™ can satisfy a large range of special measuring applications by dedicated plug gauges:
- with pilot cone, to reduce the chance of jamming
- with carbide bars, to reduce the wear of nosepiece
- for special blind bores, to measure at 0,5mm from bottom of the bore
- with DLC coating (hardness 3000HV and low coefficient of friction)
- for bores with central hub
- cone-shaped plugs for tapered bores
- for crankshafts
- for parallel walled bores
- with track for air clean stream
- right angle plug
- with 3 measuring point, for tri-lobes bores
- oval shaped plugs
- with longer nosepiece, to guide better the plug into the bore
- for outside diameter, for shaft end
- for bores with diameter >300 mm.
# posted by webman : 09:20
27 March 2006
M1 Star™ EBG Product Brochures
The EBG catalogue is now available in PDF format and in the following languages: English, French, German, Italian, Spanish, Czech
# posted by webman : 14:25
10 March 2006
M1 Star™ MBG Product Brochures
The MBG catalogue is now available in PDF format and in the following languages: English, French, German, Italian, Spanish, Czech, Japanese
# posted by webman : 15:06
13 December 2005
M1 Star™ EBG
M1 Star™ EBG (Electronic Bore Gauge) draws from MARPOSS experience gained over many years with the M1 Electron, the market best-selling solution in the last 20 years, with more than 100,000 units delivered.
The LVDT or HBT integrated-transducer design eliminates any kind of friction allowing sub-micron accuracy in a wide measuring range (3 to 300 mm diameter).
More M1 Star™ EBG guarantees high reliability and durability in the most severe production environment without any affect to its technical characteristics.
This equipment is used along with Quick Read or E4N or E9066T electronic units.
# posted by webman : 11:40
02 December 2005
M1 Star™ MBG
The M1 Star™ MBG (Mechanical Bore Gauge), allowing the use of any type of measuring display unit, is the ideal manual instrument for precision measuring of inside diameter, ovality or taper.
This equipment is used along with TD dial indicators or Quick Digit digital indicators or Quick Read or E4N or E9066 electronic units.
# posted by webman : 00:50
21 November 2005
M1 Star™
M1 Star™ is a highly advanced line of measuring plugs developed by TESTAR, a MARPOSS division, for inspecting bore diameters.Accurate, robust and reliable, it is particularly suitable for use in the harshest production environment.
Advanced engineering of manufacturing process and use of state-of-the-art technology allow M1 Star™ to be offered at very competitive price and fast delivery time.
# posted by webman : 11:42
11 November 2005
M1 Star™ Bore Gauging Line
Marposs M1 Star™ is a highly advanced line of bore gauges, ideal for precision measuring of inside diameter, ovality and taper.
# posted by webman : 11:30
